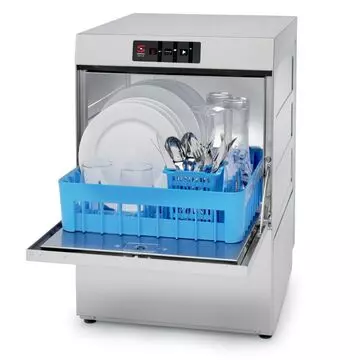

Commercial compact glasswashers
Glasswasher for all hospitality
Washing efficiency, reliability, hygiene, ergonomics, optimised consumption..., these are the technical attributes that every professional needs. That's why we are offering two ranges of dishwashers based on a common core.
- Ware washing
- Commercial compact glasswashers
Sani-Control guarantee
- GUARANTEED DISINFECTION in compliance with standard DIN 10534.
- "THERMAL LOCK" function: ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.
Deep drawn tanks
- Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
- Compact tank volume (50% water saving compared to the previous range).
- Embedded basket guides.
Hydroblade™ washing arms
- Redesigned nozzles for greater washing performance.
- The "monoblock" design delivers durability and resistance to impacts.
- 30% savings in water consumption during rinsing compared to the previous range.
3-stage filter system: surface, tank and extraction
- Keeps the washing water in optimal conditions to maintain constant washing performance.
- The surface filters feature an "easy-on" design and can be quickly removed without having to disconnect the washing arms.
"Easy-grip" door: new design with integrated door handle
- The integration of the components provides greater resistance and robustness.
- Designed to have no corners or areas that are difficult to access: prevents deposits of dirt and facilitates cleaning.
- Its ergonomic handle provides a perfect grip, even with wet hands.
- Double-walled door with safety microswitch and high quality seal.
- 30 cm load capacity: high versatility for washing a wide range of glasses and even medium-sized dishes.
You will never WASH ALONE
- Tech Services: our team of technicians will help you so that your machine is always ready for use.
- Design Services: tell us what your needs are and we will advise you.
- 60 years of experience and know-how at your disposal.
Compact tank volume
Maximum efficiency.
Hydroblade™ washing arms
Water savings, washing efficiency, strength and durability.
"Easy-on" surface filters
Extremely easy assembly and disassembly.
"Easy-grip" door
Design with integrated door handle.
Double rack option
Add the double rack accessory and double your dishwasher's output
Comparison
| ACTIVE | ULTRA | |||||
|---|---|---|---|---|---|---|
 |  |  |  | |||
| AX-40 | AX-50 | UX-40 | UX-40 ISO | |||
| Features | ||||||
| Basket dimensions | 400 x 400 mm | 500 x 500 mm | 400 x 400 mm | 400 x 400 mm | ||
| Useful height | 300 mm | 380 mm | 300 mm | 300 mm | ||
| Cold rinse option | - | yes | yes | |||
| Upper wash | yes | yes | yes | |||
| Electronic control panel | yes | yes | yes | yes | ||
| Wash temperature display | - | - | yes | yes | ||
| Rinse temperature display | - | - | yes | yes | ||
| Wash tank capacity | 9 l | 14 l | 9 l | 9 l | ||
| Double skin | - | - | opt. | yes | ||
| Cycles | ||||||
| Cycles | 3 | 3 | 5 | 5 | ||
| Cycle duration | 120 / 150 / 210" | 120 / 150 / 210" | 90 / 120 / 150 / 180" | 90 / 120 / 150 / 180" | ||
| Production baskets / hour | 30 / 24 / 17 | 30/24/17 | 40 / 30 / 24 / | 40 / 30 / 24 / 20 | ||
| Loading | ||||||
| Pump power | 0.33 Hp / 250 W | 0.75 Hp / 500 W | 0.33 Hp / 250 W | 0.33 Hp / 250 W | ||
| Tank | 1200 W | 1800 W | 1200 W | 1200 W | ||
| Boiler | 2500 W | 2500 W | 2500 W | 2800 W | ||
| Total loading | 2750 W | 3000 W | 2750 W | 3050 W | ||
| External dimensions (W x D x H) | ||||||
| External dimensions (W x D x H) | 470 x 537 x 710 mm | 580 x 635 x 835 mm | 470 x 540 x 710 mm | 490 x 540 x 710 mm | ||
| Net weight | 36.5 kg | 55 kg | 38.5 kg | 40 kg | ||
| Please note: the width of double skinned models increases by 20 mm. | ||||||
| Data with water entry at 55ºC (recommended) | ||||||
